Practicus AI Analytics Drill-Down / Drill-To-Detail

This guide shows, step by step, how to build a Territory → Category → Product → Order Detail drill-down experience in Superset using AdventureWorks via Trino.

We will:

Create one main fact dataset with all needed fields.
Build four charts on top of that dataset.

All references to columns are guaranteed to exist in the SQL we define.

1. Goal and Target Flow

The final user experience:

User clicks a territory → all charts filter to that territory.
User clicks a category → product list narrows to that category.
User clicks a product → order detail table filters to that product.
User can optionally click Explore from any chart for deeper drill-to-detail.

All of this is powered by a single Superset dataset called sales_order_detail.

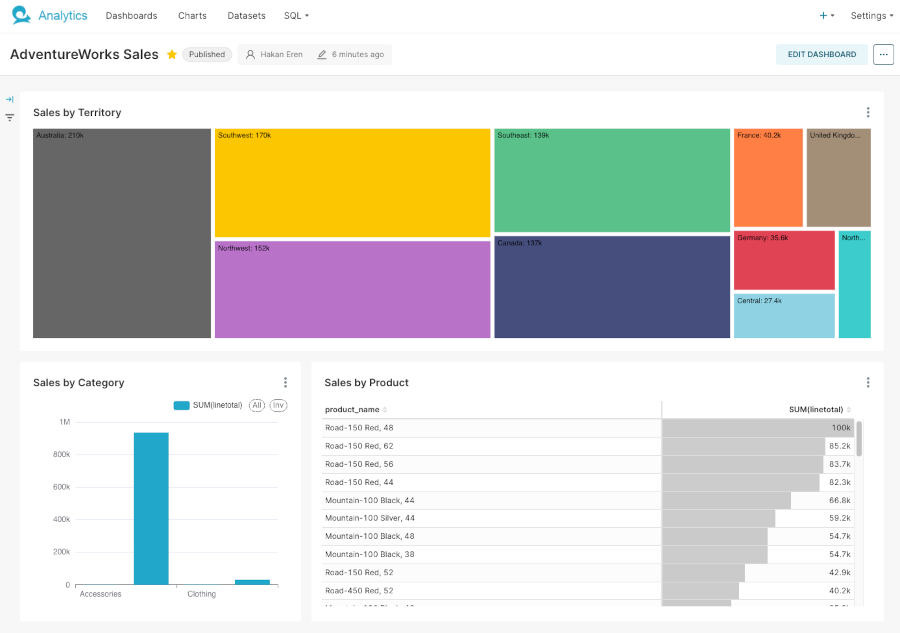

Drill down

2. Step 1 – Create the Main Dataset `sales_order_detail`

We’ll create a fact dataset joining:

Sales.SalesOrderDetail (sod)
Sales.SalesOrderHeader (soh)
Sales.SalesTerritory (st)
Production.Product (p)
Production.ProductSubcategory (ps)
Production.ProductCategory (pc)

This dataset will expose all columns we need:

territory_name
category_name
product_name
order_id
order_date
linetotal
and more

2.1. Open SQL Lab and run the query

In Superset:

Go to SQL Lab → SQL Editor.
Select the AdventureWorks / Trino connection.
Paste and run the following SQL:

SELECT
    sod.salesorderid AS order_id,
    sod.salesorderdetailid AS order_detail_id,
    soh.orderdate AS order_date,
    soh.territoryid AS territory_id,
    st.name AS territory_name,
    soh.customerid AS customer_id,
    sod.productid AS product_id,
    p.name AS product_name,
    ps.name AS subcategory_name,
    pc.name AS category_name,
    sod.orderqty AS order_qty,
    sod.unitprice AS unit_price,
    sod.unitpricediscount AS unit_price_discount,
    sod.orderqty * sod.unitprice AS linetotal
FROM adventureworks.sales.salesorderdetail AS sod
JOIN adventureworks.sales.salesorderheader AS soh
    ON sod.salesorderid = soh.salesorderid
LEFT JOIN adventureworks.sales.salesterritory AS st
    ON soh.territoryid = st.territoryid
JOIN adventureworks.production.product AS p
    ON sod.productid = p.productid
LEFT JOIN adventureworks.production.productsubcategory AS ps
    ON p.productsubcategoryid = ps.productsubcategoryid
LEFT JOIN adventureworks.production.productcategory AS pc
    ON ps.productcategoryid = pc.productcategoryid
LIMIT 500;
````

> You can remove the `LIMIT 500` later if you want the full data.

### 2.2. Save as a Superset dataset

1. In SQL Lab, click **“Explore”** or **“Save dataset”**.
2. Name it exactly: **`sales_order_detail`**.
3. Put it under your preferred database/schema.

### 2.3. Verify the important columns

In the dataset column list, confirm that you see at least:

- `territory_name` (from `st.name AS territory_name`)
- `category_name` (from `pc.name AS category_name`)
- `product_name` (from `p.name AS product_name`)
- `order_id`
- `order_date`
- `linetotal`

✅ **Check:**
If all of the above columns exist in the `sales_order_detail` dataset, you are ready to build charts.
If not, fix the SQL before moving on.
**Great, next step.**

## 3. Step 2 – Create Chart 1: Sales by Territory

This is the **top-level entry point** for the drill-down.

### 3.1. Create the chart

1. Go to **Charts → + Chart**.
2. Dataset: **`sales_order_detail`**.
3. Visualization type: **Bar Chart** (you can also use Treemap later).

### 3.2. Configure the query

Use the columns that we know exist:

- **X-axis / Group by:** `territory_name`
- **Metric / Aggregation:** `SUM(linetotal)`

Optional:

- Sort by **descending** `SUM(linetotal)`.

### 3.3. Save and name the chart

- Name: **`Sales by Territory`**
- Save it.

✅ **Check:**
Open the chart alone. Confirm:

- One bar per `territory_name`.
- Values look reasonable.

You don’t need other charts yet—just make sure **territory_name** is there and aggregated by **SUM(linetotal)**.

**Great, next step.**

## 4. Step 3 – Create Chart 2: Sales by Category (Filtered by Territory)

Now we build the **second level**: product **category** breakdown, still using the **same dataset** `sales_order_detail`.

### 4.1. Create the chart

1. **Charts → + Chart**
2. Dataset: **`sales_order_detail`**
3. Visualization: **Bar Chart**

### 4.2. Configure the query

- **X-axis / Group by:** `category_name`
- **Metric / Aggregation:** `SUM(linetotal)`

Optional:

- Add a filter for date if needed, e.g. **`order_date`**.

### 4.3. Save and name the chart

- Name: **`Sales by Category`**
- Save it.

### 4.4. Configure it to receive filters from territory

Because both charts use **the same dataset** and the column `territory_name` is present in that dataset, cross-filters can work directly.

On the **Sales by Category** chart:

1. Open the chart configuration.
2. In **Interaction / Filters / Filter scope**:

   - Ensure it can **receive filters** on the column `territory_name`.

(Exact UI words differ, but the idea is: this chart should apply any filter on `territory_name` coming from the dashboard.)

### 4.5. Quick test (optional, you can also do this after dashboard assembly)

Later, on the dashboard, we’ll verify that clicking a bar in **Sales by Territory** filters **Sales by Category** to that territory.

For now, just confirm:

- `category_name` exists in the dataset and the chart renders correctly.

✅ **Check:**
In the **Sales by Category** chart:

- You see a bar per `category_name`.
- Values are again `SUM(linetotal)`.

**Great, next step.**

## 5. Step 4 – Create Chart 3: Sales by Product (Filtered by Territory + Category)

This is the **third level**, still using `sales_order_detail`.

### 5.1. Create the chart

1. **Charts → + Chart**
2. Dataset: **`sales_order_detail`**
3. Visualization: **Bar Chart** or **Pivot Table** (Bar is simpler for demo).

### 5.2. Configure the query

- **X-axis / Group by:** `product_name`
- **Metric / Aggregation:** `SUM(linetotal)`

### 5.3. Save and name the chart

- Name: **`Sales by Product`**
- Save it.

### 5.4. Configure filters

We want this chart to respond to:

- `territory_name` (from Chart 1)
- `category_name` (from Chart 2)

In chart configuration:

1. Go to the **filter scope / interaction** settings.
2. Ensure this chart **receives filters** on:

   - `territory_name`
   - `category_name`

Again, these columns **both exist** in `sales_order_detail` (we defined them explicitly in Step 1), so you can safely reference them.

✅ **Check:**
Run the chart standalone:

- One bar per `product_name`.
- Metric is `SUM(linetotal)`.

No cross-filter test yet, we’ll do that on the dashboard.

**Great, next step.**

## 6. Step 5 – Create Chart 4: Order Detail Table (Transaction Level)

This is the **lowest level**, showing individual order lines.

### 6.1. Create the chart

1. **Charts → + Chart**
2. Dataset: **`sales_order_detail`**
3. Visualization: **Table**

### 6.2. Choose columns

Use the columns we defined in Step 1:

- `order_id`
- `order_detail_id`
- `order_date`
- `territory_name`
- `category_name`
- `product_name`
- `order_qty`
- `unit_price`
- `linetotal`

Add or remove fields as needed, but ensure at least:

- `territory_name`, `category_name`, `product_name` (for filter propagation).
- Some numeric/value columns like `order_qty` and `linetotal`.

### 6.3. Save and name the chart

- Name: **`Order Detail`**
- Save it.

### 6.4. Configure filters

We want the table to respond to all upstream selections:

- `territory_name`
- `category_name`
- `product_name`

In chart configuration:

1. Go to **filters / filter scope / interaction**.
2. Ensure the table receives filters for **all three** columns.

Now, when filters are emitted by the other charts, this table will be reduced to the matching rows in `sales_order_detail`.

✅ **Check:**
Run the table chart standalone:

- You see multiple rows of data.
- Column names match exactly what we defined in the SQL.

**Great, next step.**

## 7. Step 6 – Build the Dashboard and Wire Drill-Down

Now we’ll assemble everything on a single dashboard and test the drill-down behavior.

### 7.1. Create the dashboard

1. Go to **Dashboards → + Dashboard**.
2. Name it: **`AdventureWorks Sales Drilldown`**.
3. Save.

### 7.2. Add the charts

Edit the dashboard and add:

1. **Row 1**

   - `Sales by Territory` (Chart 1)

2. **Row 2**

   - `Sales by Category` (Chart 2)

3. **Row 3**

   - `Sales by Product` (Chart 3)

4. **Row 4**

   - `Order Detail` (Chart 4)

Arrange them from top to bottom so the drill path is visually obvious.

### 7.3. Configure global filter behavior (if needed)

Depending on your Superset version, you might also:

- Add a **Native filter** for `order_date` (Dataset: `sales_order_detail`).
- Ensure all four charts are in the scope of that filter.

This is optional for drill-down; cross-filter is enough.

### 7.4. Test the drill path end-to-end

1. On the dashboard, click a **territory** bar in **Sales by Territory**.

   - Check that:

     - `Sales by Category` updates to show categories only in that territory.
     - `Sales by Product` is also reduced to that territory.
     - `Order Detail` shows only rows from that territory.

2. Next, click a **category** bar in **Sales by Category**.

   - Check that:

     - `Sales by Product` now shows only products in that category **within the already selected territory**.
     - `Order Detail` further narrows to that category.

3. Finally, click a **product** bar in **Sales by Product**.

   - Check that:

     - `Order Detail` shows order lines only for that product (plus existing territory and category filters).

✅ **Check:**
If, at any step, a chart doesn’t filter:

- Confirm that the column being filtered (`territory_name`, `category_name`, `product_name`) **exists in that chart’s dataset** (it does, because all charts use `sales_order_detail` from Step 1).
- Confirm that the chart is configured to **receive** filters for that column.
- Confirm the top-level chart is configured to **emit** filter events when clicked.

Once all three checks pass, you have a working drill-down.

**Great, next step.**

## 8. Step 7 – Optional: Drill-To-Detail via Explore Links

1. Open the **Order Detail** table chart.
2. In **Customize → Columns** (or column formatting), select `product_name` or `order_id`.
3. Configure it as a **link** pointing to Superset Explore with filters pre-filled, for example:

```text
.../explore/?form_data={"filters":[{"col":"product_id","op":"==","val":"{{ product_id }}"}]}

Now, on the dashboard:

Click a product bar → table filters.
Click the link in a row → opens a new Explore view that shows a chart focused on that product.

This gives you a “drill-to-detail” narrative:

From high-level territory → category → product → individual order lines → full ad-hoc analysis in Explore.

9. Optional – Additional Separate Datasets

If you still want separate datasets like sales_order_header, customer, product, product_category for other analyses, you can create them from similar SQL by reusing pieces of Step 1’s query. They’re not required for the core drill-down described above, because everything is handled by the enriched sales_order_detail dataset.
